载带一型号规格齐全 性能稳定 提升效率 密度均匀 自粘性封胶 厂家直供 定制周期短
搜索更多信息
产品信息参数 / Product information parameter
| 产品名称 | 载带 | 产品规格 | 可按需定制 |
| 产品特点 | 韧性好不易折断 | 定制 | 可按需定制 |

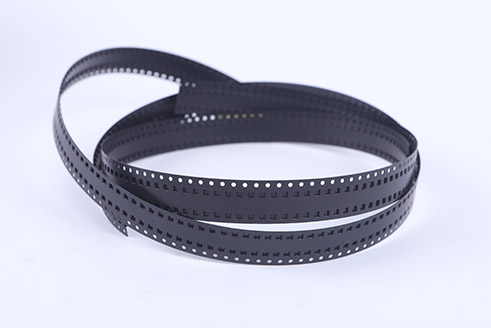

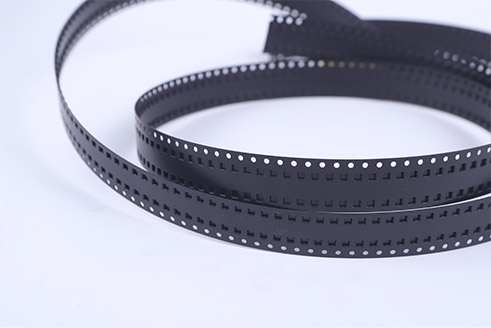

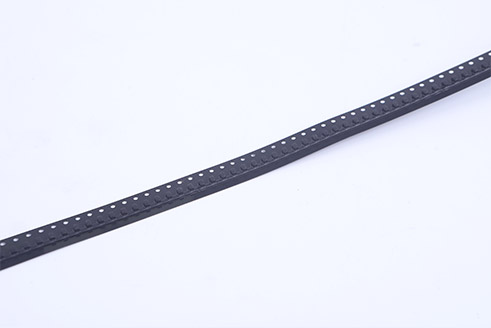

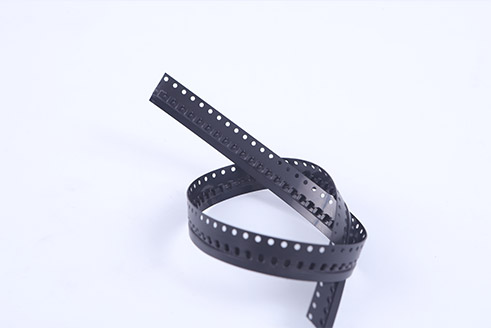

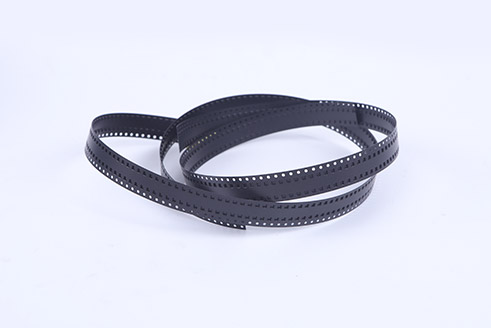

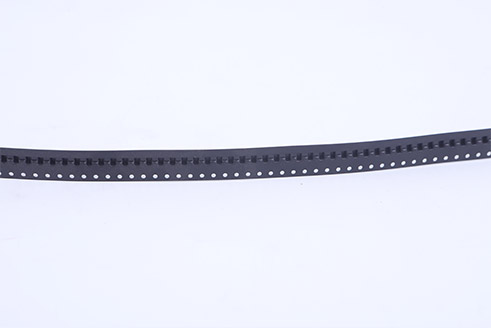

产品实物拍摄 / Product information parameter
 |  |  |
 |  |  |
产品规格 / Product specification
品名1 | 带宽 | AO | BO | KO |
SOT23-2 | 8MM | 3.20±0.1 | 2.85±0.1 | 1.22±0.1 |
SOD123弯脚 | 8MM | 1.80±0.1 | 3.90±0.1 | 1.60±0.1 |
0603-0.75 | 8MM | 0.95±0.05 | 1.85±0.05 | 0.75±0.05 |
16080H | 8MM | 1.00±0.1 | 1.90±0.1 | 0.85±0.1 |
0805-0.9 | 8MM | 1.40±0.1 | 2.25±0.1 | 0.95±0.1 |
1206-01 | 8MM | 1.80±0.1 | 3.45±0.1 | 1.00±0.1 |
1206-1.35 | 8MM | 1.85±0.1 | 3.50±0.1 | 1.35±0.1 |
0805-1.42 | 8MM | 1.40±0.1 | 2.25±0.1 | 1.40±0.1 |
SOT25/26 | 8MM | 3.20±0.1 | 3.20±0.1 | 1.40±0.1 |
SOD123 | 8MM | 2.05±0.1 | 3.90±0.1 | 1.28±0.1 |
1206-1.38 | 8MM | 1.85±0.1 | 3.58±0.1 | 1.38±0.1 |
0603-0.58 | 8MM | 0.85±0.05 | 1.85±0.05 | 0.58±0.05 |
0602 | 8MM | 1.25±0.05 | 1.85±0.05 | 0.70±0.05 |
0603-0.70 | 8MM | 0.95±0.05 | 1.85±0.05 | 0.70±0.05 |
SOD323 | 8MM | 1.40±0.1 | 2.90±0.1 | 1.25±0.1 |
SOT23-3 | 8MM | 3.15±0.1 | 3.20±0.1 | 1.35±0.1 |
1808 | 8MM | 0.95±0.05 | 1.95±0.05 | 0.75±0.05 |
3028 | 8MM | 2.95±0.1 | 3.20±0.1 | 0.95±0.1 |
3228 | 8MM | 2.95±0.1 | 3.35±0.1 | 0.95±0.1 |
2012 | 8MM | 1.45±0.1 | 2.40±0.1 | 1.50±0.1 |
201610S | 8MM | 1.90±0.1 | 2.35±0.1 | 1.15±0.1 |
QFN2*3 | 8MM | 2.25±0.1 | 3.25±0.1 | 0.95±0.1 |
3225 | 8MM | 2.90±0.1 | 3.60±0.1 | 1.10±0.1 |
2*2 | 8MM | 2.25±0.1 | 2.25±0.1 | 0.90±0.1 |
3*2.3 | 8MM | 2.60±0.1 | 3.35±0.1 | 0.95±0.1 |
2835 | 8MM | 3.00±0.1 | 3.75±0.1 | 0.95±0.1 |
1006 | 8MM | 0.70±0.05 | 1.12±0.05 | 0.60±0.05 |
2512 | 12MM | 3.50±0.1 | 6.75±0.1 | 0.81±0.1 |
SMA-2 | 12MM | 2.79±0.1 | 5.33±0.1 | 2.36±0.1 |
CD32 | 12MM | 3.33±0.1 | 3.72±0.1 | 2.10±0.1 |
MBF | 12MM | 5.22±0.1 | 7.10±0.1 | 1.70±0.1 |
CD43 | 12MM | 4.02±0.1 | 5.27±0.1 | 3.3±0.1 |
CD54 | 12MM | 5.18±0.1 | 6.29±0.1 | 4.80±0.1 |
ABS | 12MM | 5.40±0.1 | 6.70±0.1 | 1.50±0.1 |
RLP25 | 12MM | 3.50±0.1 | 6.75±0.1 | 1.00±0.1 |
SOT89 | 12MM | 4.65±0.1 | 4.35±0.1 | 1.80±0.1 |
SMAL | 12MM | 2.90±0.1 | 5.50±0.1 | 2.00±0.1 |
2010D | 12MM | 2.77±0.1 | 5.45±0.1 | 0.84±0.1 |
5*6 | 12MM | 5.30±0.1 | 6.30±0.1 | 1.10±0.1 |
3*3 | 12MM | 3.30±0.1 | 3.30±0.1 | 1.10±0.1 |
2512 | 12MM | 3.50±0.1 | 6.80±0.1 | 1.05±0.1 |
5*5 | 12MM | 5.50±0.1 | 5.50±0.1 | 1.15±0.1 |
4*4.2 | 12MM | 4.30±0.1 | 4.50±0.1 | 0.80±0.1 |
SOP8 | 12MM | 6.40±0.1 | 5.40±0.1 | 1.90±0.1 |
4*4 | 12MM | 4.25±0.1 | 4.25±0.1 | 1.03±0.1 |
0207 | 12MM | 2.80±0.1 | 6.70±0.1 | 2.75±0.1 |
2725 | 12MM | 6.75±0.1 | 7.15±0.1 | 1.70±0.1 |
2512 1.0 | 12MM | 3.50±0.1 | 6.75±0.1 | 1.00±0.1 |
3.3*3.3 | 12MM | 3.50±0.1 | 3.50±0.1 | 1.00±0.1 |
2917 | 12MM | 5.00±0.1 | 7.55±0.1 | 2.10±0.1 |
2728 | 12MM | 7.75±0.1 | 7.25±0.1 | 1.15±0.1 |
TO252 | 16MM | 6.80±0.1 | 10.80±0.1 | 2.9±0.1 |
3637-1.5 | 16MM | 9.6±0.1 | 9.9±0.1 | 1.5±0.1 |
3637-1.2 | 16MM | 9.6±0.1 | 9.9±0.1 | 1.2±0.1 |
2726 | 16MM | 7.4±0.1 | 7.1±0.1 | 4.05±0.1 |
3921-2.3 | 16MM | 5.96±0.1 | 10.66±0.1 | 2.3±0.1 |
3921-1.2 | 16MM | 5.7±0.2 | 10.5±0.2 | 1.2±0.1 |
4527 | 24MM | 7.25±0.1 | 11.85±0.1 | 1.85±0.1 |
5931 | 24MM | 8.45±0.1 | 15.7±0.1 | 2.4±0.1 |
4026 | 24MM | 7.1±0.1 | 10.6±0.1 | 4.05±0.1 |
